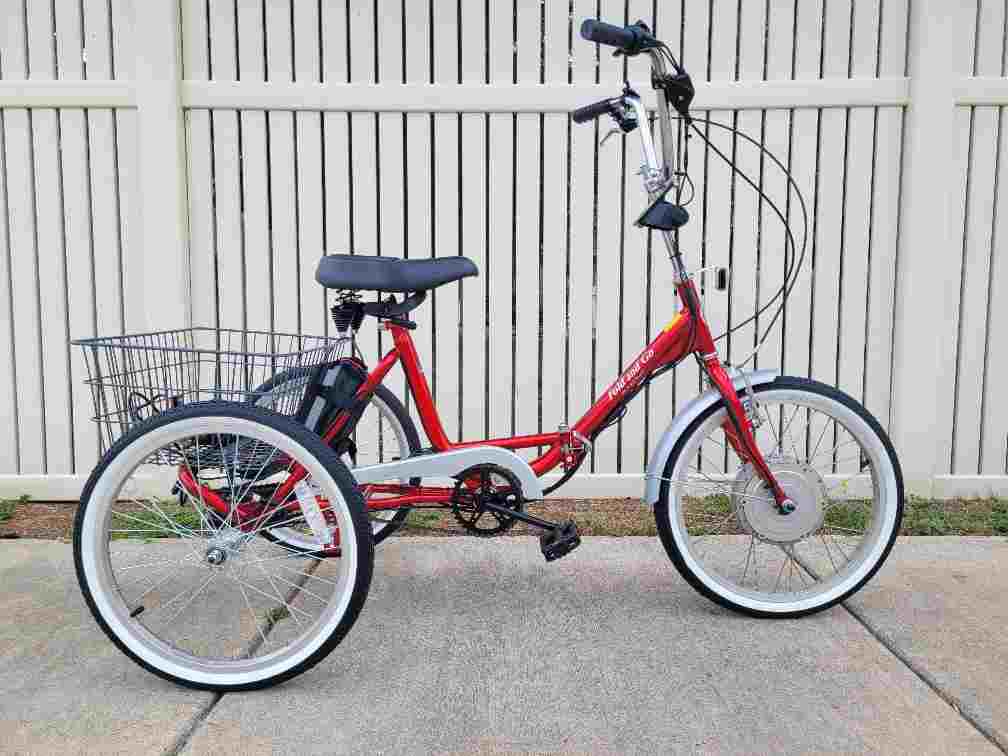

Motor and Battery Specifications:
Motor: Direct Drive Hub Motor(Both 6-bolt ISO disc brake compatible)
Power: Geared = 350-500 watt peaks
Wheel: Heavy Duty Stainless Steel Spokes with Heavy Duty Double Wall Rim
Hub Weight: Geared 9 Pounds
Warranted: 1 Year at 36v or 48v use (Not warranted for use above 60v nominal)
Speed: Top Speed is between 15 and 20MPH. *Contingent on battery and motor combination.
Range: Range is between 12-34 Miles (rider weight, rider input and terrain contingent)
*Rider weight, rider input,terrain, battery/motor combination contingent.
Charging Time: 4hrs - 8hrs (depending on battery and charger type)
Battery: 36V 10Ah
Charger: (smart/auto shutoff) for U.S./International 110-240v, 50-60hz wall sockets or extension cords.
Grip Switch:
On/Off handlebar motor control installs quickly, lets You control when
the battery gets used (not a twist throttle). Smoothly cruises at 15mph.
Minimum saddle to pedal distance 25 1/2''Maximum saddle to pedal distance 32'' **Maximum weight capacity 215 lbsSeat post length 11 1/2'' x 28.6mmTop tube length 22 3/4''Step over height 14 1/2''Basket size 21'' x 14 1/2'' x 9''Overall length 60''Overall width 29 1/4''Saddle size 12'' wide 12 1/2'' longWheel size 20''Tires 20x1.75Handlebar size 25'' wide 9'' highChain 1/2'' x 1/8''Chain ring 36 toothFreewheel 16 ToothCrank length 6''Pedals 1/2''
Folded dimensions 34" Long x 29.5" Wide x 25.5" Tall
