The Sun Atlas Deluxe has been discontinued and replaced with a new model called the Sun Atlas Transit. Click here to see the new Sun Atlas Transit

Parts # 69086

Model : SUN BICYCLES Atlas Deluxe

Supplier Part #

TRIKE SUN ATLAS DLX YL w/BLACK BSKT

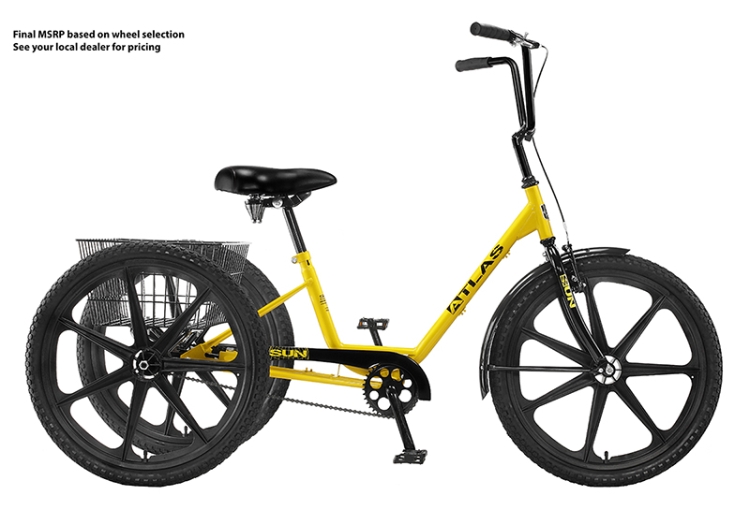

Photo Shows Trike with Option Mag Wheels

Description

The Atlas Deluxe brings safety, durability and stability to everyone who rides these well-built three-wheelers. It's a heavy-duty version of our famous Miami Sun trike, featuring a tall handlebar and smooth-riding cruiser saddle with spring suspension, sealed crank and headset bearings for durability, ED plating on all drivetrain parts to resist corrosion, a heavy-gauge wire basket for all sorts of cargo and several 24" wheel options. For the beach or the warehouse, our Atlas Deluxe is built for the long haul. Available in several frame colors and with five 24" wheel options.

High-tensile steel ultra-low 15.5" step-through frame

High-rise handlebars

Alloy v-brake front handbrake with parking lock

Sealed bearing headset & BB

Extra-large deluxe trike saddle with double coil spring suspension

Heavy-gauge vinyl-coated basket, 21"x15"x9", (thicker than traditional trike basket)

All components coated with ED black finish to resist rust

250 Pound Limit (Rider & Cargo Combined)

Outer Dimensions (30.25" Wide x 68" Long)

Includes Tires - Wheels Sold Separately

..........................................................................

...Skyway Mag Wheelset (Black/Grey/White)

...Skyway Mag Wheelset (Black with Skyway Flat-Free Solid Tires, 1.75" width)

...Lightweight Alloy Wheelset (14G Stainless Spokes)

...Heavy Duty Steel Wheelset (12G Stainless Spokes)

Safety Yellow

Specifications

Frameset

Frame

69093

High Tensile Steel, TIG-Welded

Fork

28166

1-1/8" Hi Tensile Steel, Curved Legs, Double Eyelets

Drivetrain

Crank Set

22720

One-Piece Heavy Duty Hot Forged Steel, 170mm, Black

Chainwheel

22721

Steel, 36T x 1/2'' x 1/8'', Black

Bottom Bracket

22350

Steel for OPC, Caged Bearings with Seal, Black

Freewheel

18350

20T x 1/2" x 1/8"

Chain

16197

Taya 1/2" x 1/8", (122 Links)

Pedals

41746

Slip Resistant Top, 1/2", Black

Brakes

Front Brake

12119

Alloy, Linear Pull, Black

Brake Lever

12415

Promax , Linear Pull W/Parking Lock, Black/Silver

Components

Handlebar

34087

Steel, 27.6" Wide x 9" Rise x 25.4mm Clamp, Black

Stem

58482

Alloy, 25.4 x 205mm Quill x 60mm Ext., Black

Grips

32011

Heavy Duty Rubber, 125mm, Black

Headset

35042

Steel, Caged Bearings, Sealed, 25.4 x 34 x 30mm, Black

Saddle

49465

Deluxe Cruiser, Double Coil Spring Suspension, Black

Seat Post

52162

Steel w/o Clamp, W/Anti-Slip Knurling, 28.6 x 12", Black

Seat Clamp / Binder Bolt

51190

Integrated Bolt/Nut Type, Silver

Wheels

Front Wheel

Ordered Separately

Rear Wheel

Ordered Separately

Tires

59288

24 x 1.95", Black

Tubes

6306

24" x 1.90-2.35'', Schrader Valve

Accessories

Front Fender

22722

Steel, W/Single Strut, Painted

Basket

90149

Heavy Duty Steel, Black Vinyl Coated, 21" Long x 15" Wide x 9" High

Replacement Parts

Frame Rear Unit

6702218

High Tensile Steel, TIG-Welded

Chainguard

29826

Steel, Painted

Rear Unit Hardware

6702210

Rear Unit Hardware (INCLUDES 4 BOLTS, 6 NUTS, 4 WASHERS)

Rear Unit Bearing

6702184

Rear Unit Bearing (QUANTITY OF 4 NEEDED FOR REAR UNIT)

Rear Unit Axle Complete

6702191

Rear Unit Axle, 14.8 x 765mm (INCLUDES 1 AXLE, 2 NUTS, 2 WASHERS, 1 AXLE SPACER)

Rear Unit Axle Nut

6702204

Rear Unit Axle Nut (FOR 14.8mm AXLE)

Rear Unit Axle Washer

6702192

Rear Unit Axle Washer (FOR 14.8mm AXLE)

Rear Unit Axle Spacer

6702193

Rear Unit Axle Spacer, 20mm (FOR 14.8mm AXLE)

Rear Unit Axle Key

6702203

Rear Unit Axle Key (FOR 14.8mm AXLE)

Freewheel Adaptor

6702199

Freewheel Adapter (FOR 15mm AXLE, INCLUDES 2 SET SCREWS)

Freewheel Adaptor Set Screw

6702201

Set Screw for Freewheel Adapter

Basket Hardware

6702181

Trike Basket Mounting Hardware Kit

Additional Information

Click Here for a review of the Sun Atlas Deluxe Trike
Sun Bicycles Warranty
Adult Trike Manual

Shipping Zone Map

Reviews

Good trike for Florida

<p>I live by the beach in Florida where everything rust fairly quickly because of the salt air. I chose the Sun Atlas with the mag wheels for a number of reasons. First was that almost everything on the trike is painted. Trike that have a lot of chrome parts like handlebars, fenders, cranks and other small parts really start to look tarnished after about six months and I wanted my trike to look good for a long time. I chose the mag wheel because they are made of some kind of fiber type plastic material that is strong and will not rust. I am a large person and wanted a trike that will handle my weight. I have had my Atlas Deluxe for six months and have been very happy with the quality and reliability.</p>

Reviewed Florida in on 3/30/2016

Jerry

Maintenance Trike

<p>Purchase our second Atlas Industrial Tricycle from Industrialbicycles.com. We have had our first trike for nine months and it has given us very good service. We have a small manufacturing facility and we use the trike every day for hauling tool boxes and small parts for our maintenance personnel. The trike has made our company more efficient beings we can fix the things that we need fixed faster.</p>

Reviewed Muncie Indiana in on 2/20/2016
