Industrial Tricycle Specifications

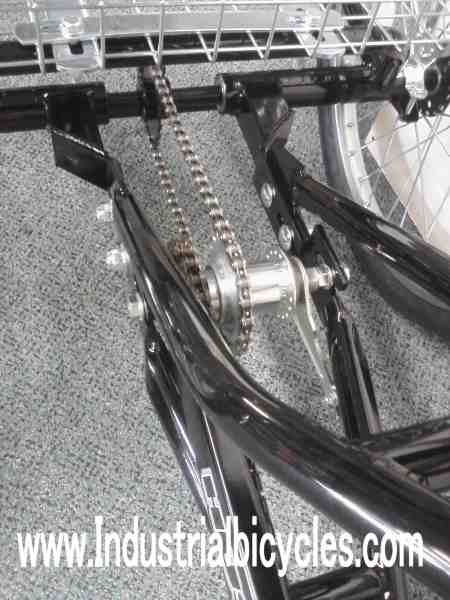

24” rear loading industrial tricycle. Economical, safe and efficient means of transportation in workplace. T-244 is fun to ride, stable, and offers excellent handling. This model comes with a rear steel platform (19-1/2” x 17”) to carry light cargo. T-244 has a 2-piece steel frame that is connected using large frame bolts. The unique frame construction allows this tricycle to be UPS ® shippable. Front and rear drive axles are supported with industrial grade sealed cartridge bearings, minimizing resistance and offer smoother riding. Super strong front v-type brake and brake lever with a spring-loaded push-in lever lock pin to prevent the tricycle from moving when parked.

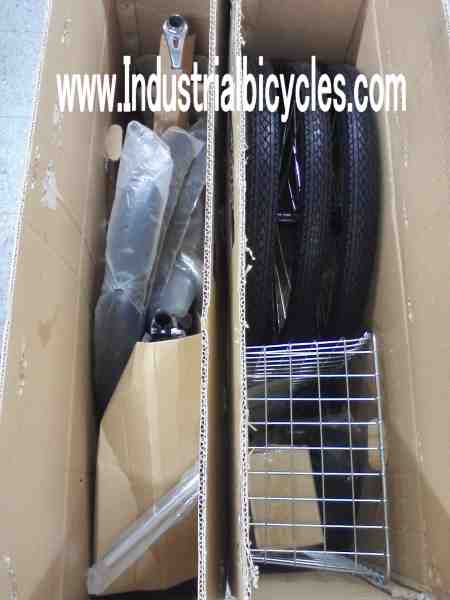

This model is shipped 65% pre-assembled in two cartons. It is recommended that a qualified mechanic perform the final assembly, which includes connecting the 2-piece frame together, mounting the wheels, handlebar, saddle, and pedals, and performing final adjustments. Optional full assembly is also available (Item # 160-199).

Specifications:

- Heavy duty hi-tensile and chromoly steel fork and frame

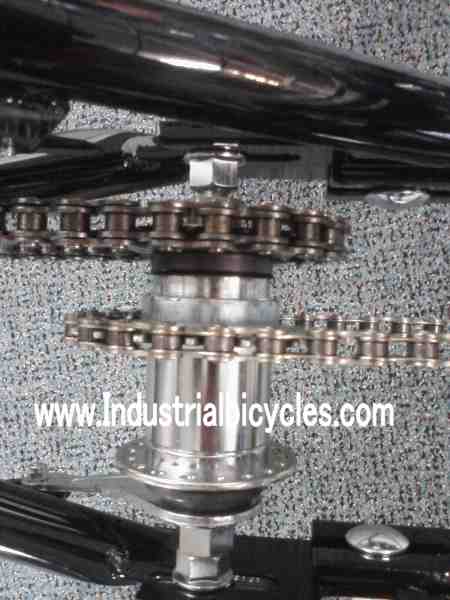

- Shimano ® coaster brake hub
- 1/2” x 3/16” heavy duty industrial chain
- 17mm rear axle with sealed cartridge bearings

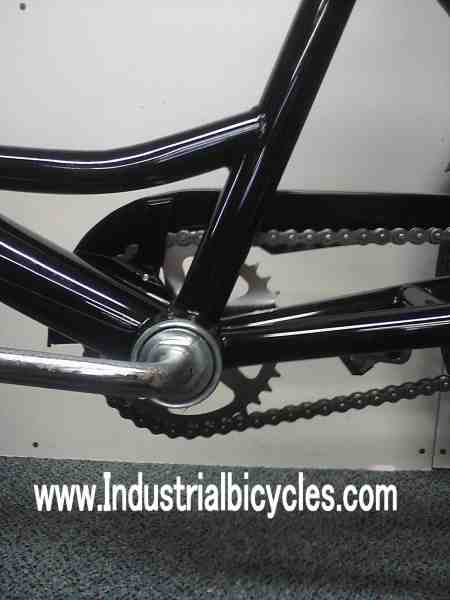

- One-piece forged steel crank set with 4mm thick 36-tooth sprocket.
- Front and rear wheel hubs with sealed cartridge bearings
- 11-gauge 36-spoked wheels with steel rims.
- Front and rear fenders painted in black.

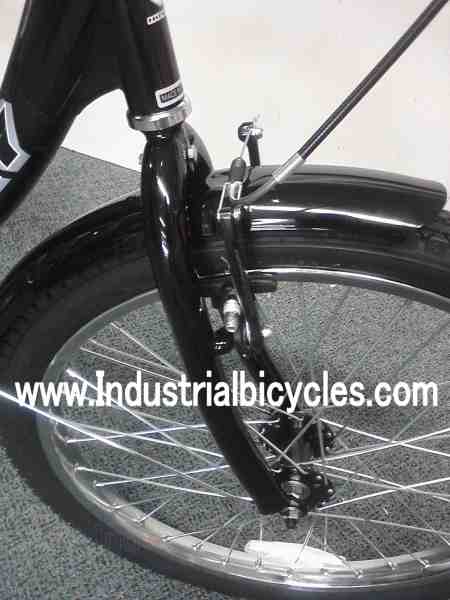

- Front V-type aluminum brake with safety parking lever
- Jumbo super comfort Husky cruiser saddle

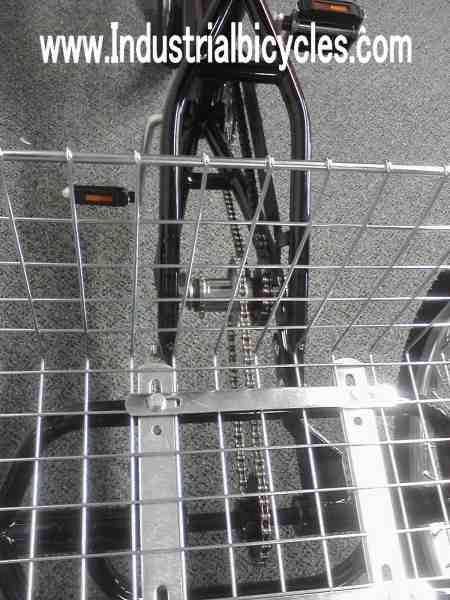

- Includes rear 19-1/2” x 17” black steel platform
- Full reflector mounted in front, rear (mounted on fenders), and wheels.
- 24x2.125 balloon tires
- Extra thick heavy duty, thorn resistant tubes
